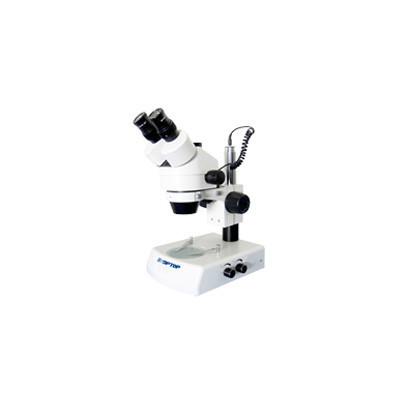

Zoom Stereo microscope
High quality optical system, and optical components coated with special coating created a high-quality optical system.
Standard magnification 7X~45X. Use optional auxiliary lens, the magnification can be 3.5X~180X.
Long working distance to create enough space for the uses.
Suit to ergonomic design, feel less fatigue when long time use.
| Eyepiece |
Wide field high eyepiont eyepiece WF10X/20mm(can mount micrometer) |
| Wide field high eyepiont eyepiece(can mount micrometer) |
| Wide field high eyepiont eyepiece WF20X/10mm(can mount micrometer) |
| Viewing Head |
STM-BN-SZM7045:Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
| SZM-7045TR: trinocular head, 45° inclined, 360°rotatable, can mount TV apater |
| STM-DG-SZM-7045V digital head, built-in 450 thousand pixels CCD, 480 TVLINES |
| Auxiliary Lens |
0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
| Focus |
SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
| SZA2 industry bound focus arm 1 (industry exclusive use) |
| SZA3 industry bound focus arm 2 (industry exclusive use) |
| Stand |
SZMST1 pillar type plain stand |
| SZMST2 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment). |
| SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness |
| SZSTL1 single arm universal stand |
| SZSTL2 double arm universal stand |
| Other light source |
Ring light/LED/Fiber |
| Photo device |
Photo tube(with PK mount),4X photo eyepiece |
| TV device |
0.35X/0.5X/1.0X C-mount adapter |
| Others |
Precision measurement platform, dark field condenser, jewelry clip |
Application field of lylight stereo microscope
Stereo microscope operation is simple, the magnification is generally in the 7X-42X, the maximum magnification of 180X. Stereo microscope is the most widely used in the use, the main purposes are as follows:
1.Study on the animal science, botany, entomology, histology, mineralogy, geology, archaeology and dermatology.
2 in the textile industry, for the inspection of raw materials and cotton fabric.
3 in the electronics industry, as a transistor spot welding, inspection, etc..
4 various kinds of materials, such as the cracks of the cracks, the corrosion of the surface and other surface phenomena.
5 in the manufacture of small precision parts, used for machine tool equipment, working process observation, precision parts inspection and assembly tools.
6 lens, prism or other transparent material surface quality, as well as the precision of the scale of the examination.
7 identify cions is true or false .
8 widely used in textile products, chemical, chemical, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, higher education institutions, archaeological research and many other fields.
